创建输入指示器
现代聊天应用会在其他用户积极输入回复时显示指示器。这些指示器有助于防止你和对方之间出现快速且冲突的回复。在本食谱中,您将构建一个可以动画化显示和隐藏的语音气泡输入指示器。

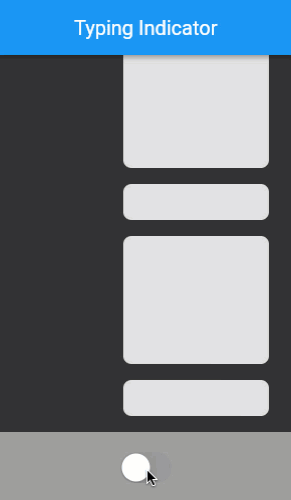

以下动画展示了应用的行为
定义输入指示器 Widget
#输入指示器存在于其自己的 Widget 中,以便可以在应用的任何地方使用它。与任何控制动画的 Widget 一样,输入指示器需要是一个有状态的 Widget。该 Widget 接受一个布尔值,该值决定指示器是否可见。此语音气泡输入指示器接受气泡的颜色以及大型语音气泡内闪烁圆圈的亮相和暗相的两种颜色。
定义一个名为 TypingIndicator
的新有状态 Widget。
class TypingIndicator extends StatefulWidget {
const TypingIndicator({
super.key,
this.showIndicator = false,
this.bubbleColor = const Color(0xFF646b7f),
this.flashingCircleDarkColor = const Color(0xFF333333),
this.flashingCircleBrightColor = const Color(0xFFaec1dd),
});
final bool showIndicator;
final Color bubbleColor;
final Color flashingCircleDarkColor;
final Color flashingCircleBrightColor;
@override
State<TypingIndicator> createState() => _TypingIndicatorState();
}
class _TypingIndicatorState extends State<TypingIndicator> {
@override
Widget build(BuildContext context) {
// TODO:
return const SizedBox();
}
}
为输入指示器腾出空间
#当输入指示器不显示时,它不占用任何空间。因此,指示器需要在出现时高度增加,在消失时高度减小。
输入指示器的高度可以是输入指示器内语音气泡的自然高度。但是,语音气泡会以弹性曲线展开。如果这种弹性快速地将所有对话消息向上或向下推动,则在视觉上会过于突兀。相反,输入指示器的高度会自行动画化,在气泡出现之前平滑地扩展。当气泡消失时,高度会平滑地收缩到零。此行为需要对输入指示器的高度进行 显式动画。
为输入指示器的高度定义一个动画,然后将该动画值应用于输入指示器内的 SizedBox
Widget。
class _TypingIndicatorState extends State<TypingIndicator>
with TickerProviderStateMixin {
late AnimationController _appearanceController;
late Animation<double> _indicatorSpaceAnimation;
@override
void initState() {
super.initState();
_appearanceController = AnimationController(
vsync: this,
);
_indicatorSpaceAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.0, 0.4, curve: Curves.easeOut),
reverseCurve: const Interval(0.0, 1.0, curve: Curves.easeOut),
).drive(Tween<double>(
begin: 0.0,
end: 60.0,
));
if (widget.showIndicator) {
_showIndicator();
}
}
@override
void didUpdateWidget(TypingIndicator oldWidget) {
super.didUpdateWidget(oldWidget);
if (widget.showIndicator != oldWidget.showIndicator) {
if (widget.showIndicator) {
_showIndicator();
} else {
_hideIndicator();
}
}
}
@override
void dispose() {
_appearanceController.dispose();
super.dispose();
}
void _showIndicator() {
_appearanceController
..duration = const Duration(milliseconds: 750)
..forward();
}
void _hideIndicator() {
_appearanceController
..duration = const Duration(milliseconds: 150)
..reverse();
}
@override
Widget build(BuildContext context) {
return AnimatedBuilder(
animation: _indicatorSpaceAnimation,
builder: (context, child) {
return SizedBox(
height: _indicatorSpaceAnimation.value,
);
},
);
}
}
TypingIndicator
会根据传入的 showIndicator
变量是 true
还是 false
分别向前或向后运行动画。
控制高度的动画根据其方向使用不同的动画曲线。当动画向前移动时,它需要快速为语音气泡腾出空间。因此,向前曲线在整个外观动画的前 40% 内运行整个高度动画。当动画反转时,它需要给语音气泡足够的时间消失,然后再收缩高度。使用所有可用时间的缓出曲线是实现此行为的好方法。
动画化语音气泡
#输入指示器显示三个语音气泡。前两个气泡小而圆。第三个气泡是长方形的,包含一些闪烁的圆圈。这些气泡从可用空间的左下方错开排列。
每个气泡通过将其比例从 0% 动画化到 100% 而出现,并且每个气泡在略微不同的时间执行此操作,因此看起来每个气泡都出现在前一个气泡之后。这称为 交错动画。
在所需的左下方位置绘制三个气泡。然后,动画化气泡的比例,以便每当 showIndicator
属性更改时,气泡都会交错显示。
class _TypingIndicatorState extends State<TypingIndicator>
with TickerProviderStateMixin {
late AnimationController _appearanceController;
late Animation<double> _indicatorSpaceAnimation;
late Animation<double> _smallBubbleAnimation;
late Animation<double> _mediumBubbleAnimation;
late Animation<double> _largeBubbleAnimation;
late AnimationController _repeatingController;
final List<Interval> _dotIntervals = const [
Interval(0.25, 0.8),
Interval(0.35, 0.9),
Interval(0.45, 1.0),
];
@override
void initState() {
super.initState();
_appearanceController = AnimationController(
vsync: this,
)..addListener(() {
setState(() {});
});
_indicatorSpaceAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.0, 0.4, curve: Curves.easeOut),
reverseCurve: const Interval(0.0, 1.0, curve: Curves.easeOut),
).drive(Tween<double>(
begin: 0.0,
end: 60.0,
));
_smallBubbleAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.0, 0.5, curve: Curves.elasticOut),
reverseCurve: const Interval(0.0, 0.3, curve: Curves.easeOut),
);
_mediumBubbleAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.2, 0.7, curve: Curves.elasticOut),
reverseCurve: const Interval(0.2, 0.6, curve: Curves.easeOut),
);
_largeBubbleAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.3, 1.0, curve: Curves.elasticOut),
reverseCurve: const Interval(0.5, 1.0, curve: Curves.easeOut),
);
if (widget.showIndicator) {
_showIndicator();
}
}
@override
void didUpdateWidget(TypingIndicator oldWidget) {
super.didUpdateWidget(oldWidget);
if (widget.showIndicator != oldWidget.showIndicator) {
if (widget.showIndicator) {
_showIndicator();
} else {
_hideIndicator();
}
}
}
@override
void dispose() {
_appearanceController.dispose();
super.dispose();
}
void _showIndicator() {
_appearanceController
..duration = const Duration(milliseconds: 750)
..forward();
}
void _hideIndicator() {
_appearanceController
..duration = const Duration(milliseconds: 150)
..reverse();
}
@override
Widget build(BuildContext context) {
return AnimatedBuilder(
animation: _indicatorSpaceAnimation,
builder: (context, child) {
return SizedBox(
height: _indicatorSpaceAnimation.value,
child: child,
);
},
child: Stack(
children: [
AnimatedBubble(
animation: _smallBubbleAnimation,
left: 8,
bottom: 8,
bubble: CircleBubble(
size: 8,
bubbleColor: widget.bubbleColor,
),
),
AnimatedBubble(
animation: _mediumBubbleAnimation,
left: 10,
bottom: 10,
bubble: CircleBubble(
size: 16,
bubbleColor: widget.bubbleColor,
),
),
AnimatedBubble(
animation: _largeBubbleAnimation,
left: 12,
bottom: 12,
bubble: StatusBubble(
dotIntervals: _dotIntervals,
flashingCircleDarkColor: widget.flashingCircleDarkColor,
flashingCircleBrightColor: widget.flashingCircleBrightColor,
bubbleColor: widget.bubbleColor,
),
),
],
),
);
}
}
class CircleBubble extends StatelessWidget {
const CircleBubble({
super.key,
required this.size,
required this.bubbleColor,
});
final double size;
final Color bubbleColor;
@override
Widget build(BuildContext context) {
return Container(
width: size,
height: size,
decoration: BoxDecoration(
shape: BoxShape.circle,
color: bubbleColor,
),
);
}
}
class AnimatedBubble extends StatelessWidget {
const AnimatedBubble({
super.key,
required this.animation,
required this.left,
required this.bottom,
required this.bubble,
});
final Animation<double> animation;
final double left;
final double bottom;
final Widget bubble;
@override
Widget build(BuildContext context) {
return Positioned(
left: left,
bottom: bottom,
child: AnimatedBuilder(
animation: animation,
builder: (context, child) {
return Transform.scale(
scale: animation.value,
alignment: Alignment.bottomLeft,
child: child,
);
},
child: bubble,
),
);
}
}
class StatusBubble extends StatelessWidget {
const StatusBubble({
super.key,
required this.dotIntervals,
required this.flashingCircleBrightColor,
required this.flashingCircleDarkColor,
required this.bubbleColor,
});
final List<Interval> dotIntervals;
final Color flashingCircleDarkColor;
final Color flashingCircleBrightColor;
final Color bubbleColor;
@override
Widget build(BuildContext context) {
return Container(
width: 85,
height: 44,
padding: const EdgeInsets.symmetric(horizontal: 8),
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(27),
color: bubbleColor,
),
);
}
}
动画化闪烁圆圈
#在大型语音气泡内,输入指示器显示三个小的圆圈,这些圆圈反复闪烁。每个圆圈在略微不同的时间闪烁,给人一种单个光源在每个圆圈后面移动的印象。此闪烁动画无限期地重复。
引入一个重复的 AnimationController
来实现圆圈闪烁,并将其传递给 StatusBubble
。
class _TypingIndicatorState extends State<TypingIndicator>
with TickerProviderStateMixin {
late AnimationController _appearanceController;
late Animation<double> _indicatorSpaceAnimation;
late Animation<double> _smallBubbleAnimation;
late Animation<double> _mediumBubbleAnimation;
late Animation<double> _largeBubbleAnimation;
late AnimationController _repeatingController;
final List<Interval> _dotIntervals = const [
Interval(0.25, 0.8),
Interval(0.35, 0.9),
Interval(0.45, 1.0),
];
@override
void initState() {
super.initState();
// other initializations...
_repeatingController = AnimationController(
vsync: this,
duration: const Duration(milliseconds: 1500),
);
if (widget.showIndicator) {
_showIndicator();
}
}
@override
void dispose() {
_appearanceController.dispose();
_repeatingController.dispose();
super.dispose();
}
void _showIndicator() {
_appearanceController
..duration = const Duration(milliseconds: 750)
..forward();
_repeatingController.repeat(); // <-- Add this
}
void _hideIndicator() {
_appearanceController
..duration = const Duration(milliseconds: 150)
..reverse();
_repeatingController.stop(); // <-- Add this
}
@override
Widget build(BuildContext context) {
return AnimatedBuilder(
animation: _indicatorSpaceAnimation,
builder: (context, child) {
return SizedBox(
height: _indicatorSpaceAnimation.value,
child: child,
);
},
child: Stack(
children: [
AnimatedBubble(
animation: _smallBubbleAnimation,
left: 8,
bottom: 8,
bubble: CircleBubble(
size: 8,
bubbleColor: widget.bubbleColor,
),
),
AnimatedBubble(
animation: _mediumBubbleAnimation,
left: 10,
bottom: 10,
bubble: CircleBubble(
size: 16,
bubbleColor: widget.bubbleColor,
),
),
AnimatedBubble(
animation: _largeBubbleAnimation,
left: 12,
bottom: 12,
bubble: StatusBubble(
repeatingController: _repeatingController, // <-- Add this
dotIntervals: _dotIntervals,
flashingCircleDarkColor: widget.flashingCircleDarkColor,
flashingCircleBrightColor: widget.flashingCircleBrightColor,
bubbleColor: widget.bubbleColor,
),
),
],
),
);
}
}
class StatusBubble extends StatelessWidget {
const StatusBubble({
super.key,
required this.repeatingController,
required this.dotIntervals,
required this.flashingCircleBrightColor,
required this.flashingCircleDarkColor,
required this.bubbleColor,
});
final AnimationController repeatingController;
final List<Interval> dotIntervals;
final Color flashingCircleDarkColor;
final Color flashingCircleBrightColor;
final Color bubbleColor;
@override
Widget build(BuildContext context) {
return Container(
width: 85,
height: 44,
padding: const EdgeInsets.symmetric(horizontal: 8),
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(27),
color: bubbleColor,
),
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
FlashingCircle(
index: 0,
repeatingController: repeatingController,
dotIntervals: dotIntervals,
flashingCircleDarkColor: flashingCircleDarkColor,
flashingCircleBrightColor: flashingCircleBrightColor,
),
FlashingCircle(
index: 1,
repeatingController: repeatingController,
dotIntervals: dotIntervals,
flashingCircleDarkColor: flashingCircleDarkColor,
flashingCircleBrightColor: flashingCircleBrightColor,
),
FlashingCircle(
index: 2,
repeatingController: repeatingController,
dotIntervals: dotIntervals,
flashingCircleDarkColor: flashingCircleDarkColor,
flashingCircleBrightColor: flashingCircleBrightColor,
),
],
),
);
}
}
class FlashingCircle extends StatelessWidget {
const FlashingCircle({
super.key,
required this.index,
required this.repeatingController,
required this.dotIntervals,
required this.flashingCircleBrightColor,
required this.flashingCircleDarkColor,
});
final int index;
final AnimationController repeatingController;
final List<Interval> dotIntervals;
final Color flashingCircleDarkColor;
final Color flashingCircleBrightColor;
@override
Widget build(BuildContext context) {
return AnimatedBuilder(
animation: repeatingController,
builder: (context, child) {
final circleFlashPercent = dotIntervals[index].transform(
repeatingController.value,
);
final circleColorPercent = sin(pi * circleFlashPercent);
return Container(
width: 12,
height: 12,
decoration: BoxDecoration(
shape: BoxShape.circle,
color: Color.lerp(
flashingCircleDarkColor,
flashingCircleBrightColor,
circleColorPercent,
),
),
);
},
);
}
}
每个圆圈使用正弦 (sin
) 函数计算其颜色,以便颜色在最小值和最大值处逐渐变化。此外,每个圆圈在其指定的间隔内动画化其颜色,该间隔占据整体动画时间的一部分。这些间隔的位置产生了单个光源在三个点后面移动的视觉效果。
恭喜!您现在拥有了一个输入指示器,可以让用户知道其他人何时正在输入。指示器可以动画化显示和隐藏,并且在其他用户输入时显示重复动画。
交互式示例
#运行应用
- 单击屏幕底部的圆形开关以打开和关闭输入指示器气泡。
import 'dart:math';
import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';
void main() {
runApp(
const MaterialApp(
home: ExampleIsTyping(),
debugShowCheckedModeBanner: false,
),
);
}
const _backgroundColor = Color(0xFF333333);
class ExampleIsTyping extends StatefulWidget {
const ExampleIsTyping({
super.key,
});
@override
State<ExampleIsTyping> createState() => _ExampleIsTypingState();
}
class _ExampleIsTypingState extends State<ExampleIsTyping> {
bool _isSomeoneTyping = false;
@override
Widget build(BuildContext context) {
return Scaffold(
backgroundColor: _backgroundColor,
appBar: AppBar(
title: const Text('Typing Indicator'),
),
body: Column(
children: [
Expanded(
child: ListView.builder(
padding: const EdgeInsets.symmetric(vertical: 8),
itemCount: 25,
reverse: true,
itemBuilder: (context, index) {
return Padding(
padding: const EdgeInsets.only(left: 100),
child: FakeMessage(isBig: index.isOdd),
);
},
),
),
Align(
alignment: Alignment.bottomLeft,
child: TypingIndicator(
showIndicator: _isSomeoneTyping,
),
),
Container(
color: Colors.grey,
padding: const EdgeInsets.all(16),
child: Center(
child: CupertinoSwitch(
onChanged: (newValue) {
setState(() {
_isSomeoneTyping = newValue;
});
},
value: _isSomeoneTyping,
),
),
),
],
),
);
}
}
class TypingIndicator extends StatefulWidget {
const TypingIndicator({
super.key,
this.showIndicator = false,
this.bubbleColor = const Color(0xFF646b7f),
this.flashingCircleDarkColor = const Color(0xFF333333),
this.flashingCircleBrightColor = const Color(0xFFaec1dd),
});
final bool showIndicator;
final Color bubbleColor;
final Color flashingCircleDarkColor;
final Color flashingCircleBrightColor;
@override
State<TypingIndicator> createState() => _TypingIndicatorState();
}
class _TypingIndicatorState extends State<TypingIndicator>
with TickerProviderStateMixin {
late AnimationController _appearanceController;
late Animation<double> _indicatorSpaceAnimation;
late Animation<double> _smallBubbleAnimation;
late Animation<double> _mediumBubbleAnimation;
late Animation<double> _largeBubbleAnimation;
late AnimationController _repeatingController;
final List<Interval> _dotIntervals = const [
Interval(0.25, 0.8),
Interval(0.35, 0.9),
Interval(0.45, 1.0),
];
@override
void initState() {
super.initState();
_appearanceController = AnimationController(
vsync: this,
)..addListener(() {
setState(() {});
});
_indicatorSpaceAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.0, 0.4, curve: Curves.easeOut),
reverseCurve: const Interval(0.0, 1.0, curve: Curves.easeOut),
).drive(Tween<double>(
begin: 0.0,
end: 60.0,
));
_smallBubbleAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.0, 0.5, curve: Curves.elasticOut),
reverseCurve: const Interval(0.0, 0.3, curve: Curves.easeOut),
);
_mediumBubbleAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.2, 0.7, curve: Curves.elasticOut),
reverseCurve: const Interval(0.2, 0.6, curve: Curves.easeOut),
);
_largeBubbleAnimation = CurvedAnimation(
parent: _appearanceController,
curve: const Interval(0.3, 1.0, curve: Curves.elasticOut),
reverseCurve: const Interval(0.5, 1.0, curve: Curves.easeOut),
);
_repeatingController = AnimationController(
vsync: this,
duration: const Duration(milliseconds: 1500),
);
if (widget.showIndicator) {
_showIndicator();
}
}
@override
void didUpdateWidget(TypingIndicator oldWidget) {
super.didUpdateWidget(oldWidget);
if (widget.showIndicator != oldWidget.showIndicator) {
if (widget.showIndicator) {
_showIndicator();
} else {
_hideIndicator();
}
}
}
@override
void dispose() {
_appearanceController.dispose();
_repeatingController.dispose();
super.dispose();
}
void _showIndicator() {
_appearanceController
..duration = const Duration(milliseconds: 750)
..forward();
_repeatingController.repeat();
}
void _hideIndicator() {
_appearanceController
..duration = const Duration(milliseconds: 150)
..reverse();
_repeatingController.stop();
}
@override
Widget build(BuildContext context) {
return AnimatedBuilder(
animation: _indicatorSpaceAnimation,
builder: (context, child) {
return SizedBox(
height: _indicatorSpaceAnimation.value,
child: child,
);
},
child: Stack(
children: [
AnimatedBubble(
animation: _smallBubbleAnimation,
left: 8,
bottom: 8,
bubble: CircleBubble(
size: 8,
bubbleColor: widget.bubbleColor,
),
),
AnimatedBubble(
animation: _mediumBubbleAnimation,
left: 10,
bottom: 10,
bubble: CircleBubble(
size: 16,
bubbleColor: widget.bubbleColor,
),
),
AnimatedBubble(
animation: _largeBubbleAnimation,
left: 12,
bottom: 12,
bubble: StatusBubble(
repeatingController: _repeatingController,
dotIntervals: _dotIntervals,
flashingCircleDarkColor: widget.flashingCircleDarkColor,
flashingCircleBrightColor: widget.flashingCircleBrightColor,
bubbleColor: widget.bubbleColor,
),
),
],
),
);
}
}
class CircleBubble extends StatelessWidget {
const CircleBubble({
super.key,
required this.size,
required this.bubbleColor,
});
final double size;
final Color bubbleColor;
@override
Widget build(BuildContext context) {
return Container(
width: size,
height: size,
decoration: BoxDecoration(
shape: BoxShape.circle,
color: bubbleColor,
),
);
}
}
class AnimatedBubble extends StatelessWidget {
const AnimatedBubble({
super.key,
required this.animation,
required this.left,
required this.bottom,
required this.bubble,
});
final Animation<double> animation;
final double left;
final double bottom;
final Widget bubble;
@override
Widget build(BuildContext context) {
return Positioned(
left: left,
bottom: bottom,
child: AnimatedBuilder(
animation: animation,
builder: (context, child) {
return Transform.scale(
scale: animation.value,
alignment: Alignment.bottomLeft,
child: child,
);
},
child: bubble,
),
);
}
}
class StatusBubble extends StatelessWidget {
const StatusBubble({
super.key,
required this.repeatingController,
required this.dotIntervals,
required this.flashingCircleBrightColor,
required this.flashingCircleDarkColor,
required this.bubbleColor,
});
final AnimationController repeatingController;
final List<Interval> dotIntervals;
final Color flashingCircleDarkColor;
final Color flashingCircleBrightColor;
final Color bubbleColor;
@override
Widget build(BuildContext context) {
return Container(
width: 85,
height: 44,
padding: const EdgeInsets.symmetric(horizontal: 8),
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(27),
color: bubbleColor,
),
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
FlashingCircle(
index: 0,
repeatingController: repeatingController,
dotIntervals: dotIntervals,
flashingCircleDarkColor: flashingCircleDarkColor,
flashingCircleBrightColor: flashingCircleBrightColor,
),
FlashingCircle(
index: 1,
repeatingController: repeatingController,
dotIntervals: dotIntervals,
flashingCircleDarkColor: flashingCircleDarkColor,
flashingCircleBrightColor: flashingCircleBrightColor,
),
FlashingCircle(
index: 2,
repeatingController: repeatingController,
dotIntervals: dotIntervals,
flashingCircleDarkColor: flashingCircleDarkColor,
flashingCircleBrightColor: flashingCircleBrightColor,
),
],
),
);
}
}
class FlashingCircle extends StatelessWidget {
const FlashingCircle({
super.key,
required this.index,
required this.repeatingController,
required this.dotIntervals,
required this.flashingCircleBrightColor,
required this.flashingCircleDarkColor,
});
final int index;
final AnimationController repeatingController;
final List<Interval> dotIntervals;
final Color flashingCircleDarkColor;
final Color flashingCircleBrightColor;
@override
Widget build(BuildContext context) {
return AnimatedBuilder(
animation: repeatingController,
builder: (context, child) {
final circleFlashPercent = dotIntervals[index].transform(
repeatingController.value,
);
final circleColorPercent = sin(pi * circleFlashPercent);
return Container(
width: 12,
height: 12,
decoration: BoxDecoration(
shape: BoxShape.circle,
color: Color.lerp(
flashingCircleDarkColor,
flashingCircleBrightColor,
circleColorPercent,
),
),
);
},
);
}
}
class FakeMessage extends StatelessWidget {
const FakeMessage({
super.key,
required this.isBig,
});
final bool isBig;
@override
Widget build(BuildContext context) {
return Container(
margin: const EdgeInsets.symmetric(vertical: 8, horizontal: 24),
height: isBig ? 128 : 36,
decoration: BoxDecoration(
borderRadius: const BorderRadius.all(Radius.circular(8)),
color: Colors.grey.shade300,
),
);
}
}
除非另有说明,否则本网站上的文档反映了 Flutter 的最新稳定版本。页面最后更新于 2024-06-26。 查看源代码 或 报告问题。
