向命名路由传递参数
使用通用标识符,Navigator
提供了从应用的任何部分导航到命名路由的能力。在某些情况下,你可能还需要向命名路由传递参数。例如,你可能希望导航到 /user
路由,并向该路由传递有关用户的信息。
你可以使用 Navigator.pushNamed()
方法的 arguments
参数来完成此任务。可以使用 ModalRoute.of()
方法,或在提供给 MaterialApp
或 CupertinoApp
构造函数的 onGenerateRoute()
函数中提取参数。
本教程演示了如何向命名路由传递参数,以及如何使用 ModalRoute.of()
和 onGenerateRoute()
按照以下步骤读取参数:
- 定义你需要传递的参数。
- 创建一个提取参数的 widget。
- 在
routes
表中注册 widget。 - 导航到 widget。
1. 定义需要传递的参数
#首先,定义需要传递给新路由的参数。在此示例中,传递两部分数据:屏幕的 title
和一条 message
。
要传递这两部分数据,创建一个存储此信息的类。
// You can pass any object to the arguments parameter.
// In this example, create a class that contains both
// a customizable title and message.
class ScreenArguments {
final String title;
final String message;
ScreenArguments(this.title, this.message);
}
2. 创建一个提取参数的 widget
#接下来,创建一个 widget,它从 ScreenArguments
中提取并显示 title
和 message
。要访问 ScreenArguments
,请使用 ModalRoute.of()
方法。此方法返回带有参数的当前路由。
// A Widget that extracts the necessary arguments from
// the ModalRoute.
class ExtractArgumentsScreen extends StatelessWidget {
const ExtractArgumentsScreen({super.key});
static const routeName = '/extractArguments';
@override
Widget build(BuildContext context) {
// Extract the arguments from the current ModalRoute
// settings and cast them as ScreenArguments.
final args = ModalRoute.of(context)!.settings.arguments as ScreenArguments;
return Scaffold(
appBar: AppBar(title: Text(args.title)),
body: Center(child: Text(args.message)),
);
}
}
3. 在 routes
表中注册 widget
#接下来,在提供给 MaterialApp
widget 的 routes
中添加一个条目。routes
定义了应根据路由名称创建哪个 widget。
MaterialApp(
routes: {
ExtractArgumentsScreen.routeName: (context) =>
const ExtractArgumentsScreen(),
},
)
4. 导航到 widget
#最后,当用户使用 Navigator.pushNamed()
点击按钮时,导航到 ExtractArgumentsScreen
。通过 arguments
属性向路由提供参数。ExtractArgumentsScreen
从这些参数中提取 title
和 message
。
// A button that navigates to a named route.
// The named route extracts the arguments
// by itself.
ElevatedButton(
onPressed: () {
// When the user taps the button,
// navigate to a named route and
// provide the arguments as an optional
// parameter.
Navigator.pushNamed(
context,
ExtractArgumentsScreen.routeName,
arguments: ScreenArguments(
'Extract Arguments Screen',
'This message is extracted in the build method.',
),
);
},
child: const Text('Navigate to screen that extracts arguments'),
),
或者,使用 onGenerateRoute
提取参数
#除了直接在 widget 内部提取参数外,你还可以在 onGenerateRoute()
函数中提取参数,并将它们传递给 widget。
onGenerateRoute()
函数根据给定的 RouteSettings
创建正确的路由。
MaterialApp(
// Provide a function to handle named routes.
// Use this function to identify the named
// route being pushed, and create the correct
// Screen.
onGenerateRoute: (settings) {
// If you push the PassArguments route
if (settings.name == PassArgumentsScreen.routeName) {
// Cast the arguments to the correct
// type: ScreenArguments.
final args = settings.arguments as ScreenArguments;
// Then, extract the required data from
// the arguments and pass the data to the
// correct screen.
return MaterialPageRoute(
builder: (context) {
return PassArgumentsScreen(
title: args.title,
message: args.message,
);
},
);
}
// The code only supports
// PassArgumentsScreen.routeName right now.
// Other values need to be implemented if we
// add them. The assertion here will help remind
// us of that higher up in the call stack, since
// this assertion would otherwise fire somewhere
// in the framework.
assert(false, 'Need to implement ${settings.name}');
return null;
},
)

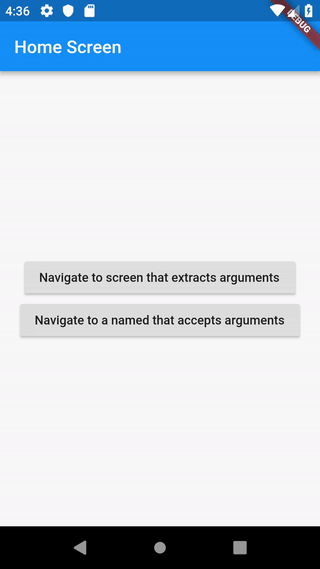

互动示例
#import 'package:flutter/material.dart';
void main() => runApp(const MyApp());
class MyApp extends StatelessWidget {
const MyApp({super.key});
@override
Widget build(BuildContext context) {
return MaterialApp(
routes: {
ExtractArgumentsScreen.routeName: (context) =>
const ExtractArgumentsScreen(),
},
// Provide a function to handle named routes.
// Use this function to identify the named
// route being pushed, and create the correct
// Screen.
onGenerateRoute: (settings) {
// If you push the PassArguments route
if (settings.name == PassArgumentsScreen.routeName) {
// Cast the arguments to the correct
// type: ScreenArguments.
final args = settings.arguments as ScreenArguments;
// Then, extract the required data from
// the arguments and pass the data to the
// correct screen.
return MaterialPageRoute(
builder: (context) {
return PassArgumentsScreen(
title: args.title,
message: args.message,
);
},
);
}
// The code only supports
// PassArgumentsScreen.routeName right now.
// Other values need to be implemented if we
// add them. The assertion here will help remind
// us of that higher up in the call stack, since
// this assertion would otherwise fire somewhere
// in the framework.
assert(false, 'Need to implement ${settings.name}');
return null;
},
title: 'Navigation with Arguments',
home: const HomeScreen(),
);
}
}
class HomeScreen extends StatelessWidget {
const HomeScreen({super.key});
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('Home Screen')),
body: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
// A button that navigates to a named route.
// The named route extracts the arguments
// by itself.
ElevatedButton(
onPressed: () {
// When the user taps the button,
// navigate to a named route and
// provide the arguments as an optional
// parameter.
Navigator.pushNamed(
context,
ExtractArgumentsScreen.routeName,
arguments: ScreenArguments(
'Extract Arguments Screen',
'This message is extracted in the build method.',
),
);
},
child: const Text('Navigate to screen that extracts arguments'),
),
// A button that navigates to a named route.
// For this route, extract the arguments in
// the onGenerateRoute function and pass them
// to the screen.
ElevatedButton(
onPressed: () {
// When the user taps the button, navigate
// to a named route and provide the arguments
// as an optional parameter.
Navigator.pushNamed(
context,
PassArgumentsScreen.routeName,
arguments: ScreenArguments(
'Accept Arguments Screen',
'This message is extracted in the onGenerateRoute '
'function.',
),
);
},
child: const Text('Navigate to a named that accepts arguments'),
),
],
),
),
);
}
}
// A Widget that extracts the necessary arguments from
// the ModalRoute.
class ExtractArgumentsScreen extends StatelessWidget {
const ExtractArgumentsScreen({super.key});
static const routeName = '/extractArguments';
@override
Widget build(BuildContext context) {
// Extract the arguments from the current ModalRoute
// settings and cast them as ScreenArguments.
final args = ModalRoute.of(context)!.settings.arguments as ScreenArguments;
return Scaffold(
appBar: AppBar(title: Text(args.title)),
body: Center(child: Text(args.message)),
);
}
}
// A Widget that accepts the necessary arguments via the
// constructor.
class PassArgumentsScreen extends StatelessWidget {
static const routeName = '/passArguments';
final String title;
final String message;
// This Widget accepts the arguments as constructor
// parameters. It does not extract the arguments from
// the ModalRoute.
//
// The arguments are extracted by the onGenerateRoute
// function provided to the MaterialApp widget.
const PassArgumentsScreen({
super.key,
required this.title,
required this.message,
});
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: Text(title)),
body: Center(child: Text(message)),
);
}
}
// You can pass any object to the arguments parameter.
// In this example, create a class that contains both
// a customizable title and message.
class ScreenArguments {
final String title;
final String message;
ScreenArguments(this.title, this.message);
}
